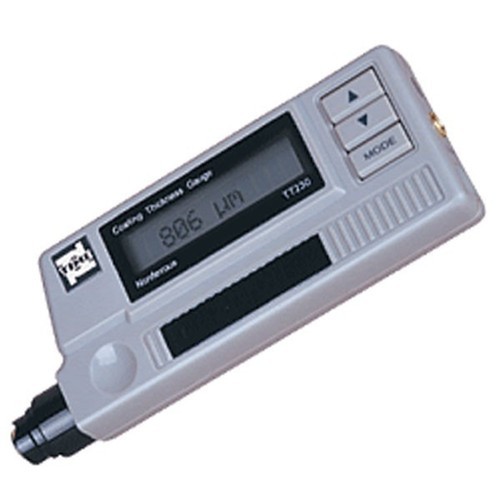

Time Coating Meter

Quick Inquiry

1,800.00

  • Magnetic induction (F) method is used to measure the thickness of non-magnetic coating on ferrous metal
  • Eddy current (N) method is used to measure the thickness of non-conducting coating on non-ferrous materials
  • Automatic recognition of substrate
  • Automatic selection of measuring methods
  • 5 statistical ways: Mean values / Max. values / Min. values / testing numbers.(No.) / standard deviations (S.DeV)
  • Upper-lower limit setting and sound alarm
  • Data output to printer or PC by RS232 cable
  • 500 readings can be stored
  • 2 measuring modes: continuous / single
  • 2 stop ways: Manual/automatic
  • Technical Specification

    Probe types F N
    Measuring methods: magnetic induction eddy current
    Measuring range: 0 to 1250 μm 0 to 1250 μm
    0 to 40μm (for chromeplate on copper)
    Minimum resolution: 0.1μm
    Tolerance : One point calibration ±(3%H 1) ± (3%H 1.5)
    H means the thickness of tested piece
    Two points calibration ±[(1~3)%H 1] ±[(1~3)%H 1.5]
    H means the thickness of tested piece
    Measuring condition Min. curvature radius (mm) Convexity 1.5 Convexity 3
    Min. testing area diameter (mm) Φ7 Φ5
    Critical thickness of substrate 0.5 0.3
    Power supply Battery AAA 1.5V (2pcs)
    Working Temperature 0-40°C
    Dimensions 110mm×50mm×23mm
    Weight 100g
